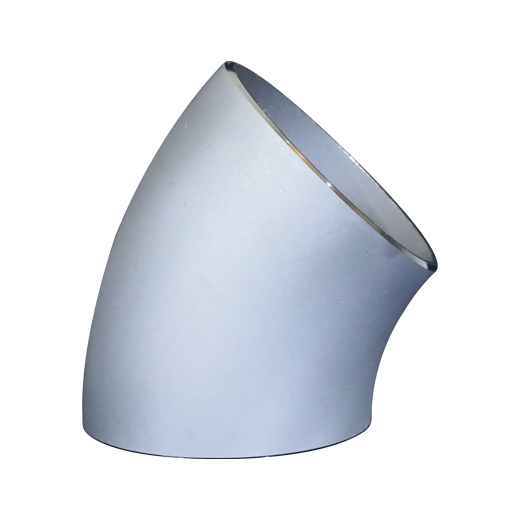

45 Degree Stainless Steel Elbow

S&S Stainless International supplies precision-engineered 45° stainless steel elbows designed to redirect fluid flow at a moderate 45-degree angle, significantly reducing pressure drop, turbulence, and internal pipe erosion. Manufactured in premium ASTM A403 304/304L and 316/316L stainless steel grades in compliance with ANSI/ASME B16.9 and MSS SP-43 standards, our 45-degree elbows deliver exceptional mechanical strength and long-term corrosion resistance. Available in both long radius (LR) butt-weld configurations and custom schedule wall thicknesses, these fittings are essential for optimizing fluid dynamics in oil and gas, chemical processing, water treatment, and high-pressure industrial piping systems worldwide.

What is A 45° Elbow?

The 45-degree stainless steel elbow is a top-tier ASME B16.9 stainless steel pipe fitting designed for a smooth and gradual change in flow direction, reducing stress and maintaining efficient fluid movement in piping systems. With a long radius curve, the 45-degree stainless steel elbows minimize turbulence and pressure loss, making it perfect for industries that require optimal flow performance and durability, such as oil and gas, petrochemical, and power generation.

Manufactured to meet international standards like ASME, ASTM, JIS, and DIN, our 45-degree stainless steel elbow offers superior precision and reliability in demanding environments.

Product Overview of 45° Stainless Steel Elbow​s

  • Specification
    • Material Grade 304, 316, 316L
    • Nominal Pipe Size 1/2” – 48”
    • Thickness SCH 5S, SCH 10S, SCH 40S, SCH 80S
  • Product Weight
  • Product Packaging

    • Secure Export Packaging: Packed in seaworthy wooden bundles, protective cardboard, or heat-treated wooden cases to prevent transit damage.

    • Accurate & Labeled: Items are carefully sorted, packed, and labeled against the packing list for correct quantities and easy identification.

Product Specification of 45° Stainless Steel Elbows

DN15 – DN300

ASME B16.9 stainless steel elbow dimension chart, covering pressure classes from DN15 - 300.


Nominal Pipe Size Outside Diameter Thickness(mm) Center to End(B, mm)
DN Inch mm SCH 5S SCH 10S SCH 40S SCH 80S
15 ½’’ 21.3 1.65 2.11 2.77 3.73 15.88
20 ¾’’ 26.7 1.65 2.11 2.87 3.91 11.13
25 1’’ 33.4 1.65 2.77 3.38 4.55 22.22
32 1 ¼’’ 42.2 1.65 2.77 3.56 4.85 25.40
40 1 ½’’ 48.3 1.65 2.77 3.68 5.08 28.45
50 2’’ 60.3 1.65 2.77 3.91 5.54 35.05
65 2 ½’’ 73.0 2.11 3.05 5.16 7.01 44.45
80 3’’ 88.9 2.11 3.05 5.49 7.62 50.80
90 3 ½’’ 101.6 2.11 3.05 5.74 8.08 57.15
100 4’’ 114.3 2.11 3.05 6.02 8.56 63.50
125 5’’ 141.3 2.77 3.40 6.55 9.53 79.25
150 6’’ 168.3 2.77 3.40 7.11 10.97 95.25
200 8’’ 219.1 2.77 3.76 8.18 12.7 127.00
250 10’’ 273.1 3.4 4.19 9.27 12.7 158.75
300 12’’ 323.9 3.96 4.57 9.53 12.7 190.50



DN350 – DN1200

ASME B16.9 stainless steel elbow dimension chart, covering pressure classes from DN350 - 1200.


Nominal Pipe Size Outside Diameter Thickness(mm) Center to End (B, mm)
DN Inch mm SCH 10S SCH 20S STD XS
350 14’’ 355.6 4.78 7.92 9.53 12.7 222.25
400 16’’ 406.4 4.78 7.92 9.53 12.7 254.00
450 18’’ 457.2 4.78 7.92 9.53 12.7 285.75
500 20’’ 508 5.54 9.53 9.53 12.7 317.50
550 22’’ 558.8 5.54 9.53 9.53 12.7 342.90
600 24’’ 609.6 6.35 9.53 9.53 12.7 381.00
650 26’’ 660.4 7.92 12.7 9.53 12.7 406.40
700 28’’ 711.2 7.92 12.7 9.53 12.7 438.15
750 30’’ 762 7.92 12.7 9.53 12.7 469.90
800 32’’ 812.8 7.92 12.7 9.53 12.7 501.65
850 34’’ 863.6 7.92 12.7 9.53 12.7 533.40
900 36’’ 914.4 7.92 12.7 9.53 12.7 565.15
950 38’’ 965.2 7.92 – 9.53 12.7 599.95
1000 40’’ 1016.0 7.92 – 9.53 12.7 631.95
1050 42’’ 1066.8 7.92 – 9.53 12.7 660.40
1100 44’’ 1117.6 7.92 – 9.53 12.7 695.45
1150 46’’ 1168.4 7.92 – 9.53 12.7 726.95
1200 48’’ 1219.20 7.92 – 9.53 12.7 758.95

FAQs

1. What manufacturing processes and end connection types do you offer for 45° elbows?

We produce both seamless (SMLS) 45-degree elbows for high-pressure systems and welded (WLD) elbows formed from premium stainless steel plate for larger industrial diameters. Depending on your piping design, we supply standard Butt-Weld ends (ANSI/ASME B16.9) with precision 37.5° bevels, as well as Socket-Weld and Threaded (NPT/BSP) end connections (ASME B16.11) for high-pressure forged fittings.

Every production lot undergoes 100% Positive Material Identification (PMI) chemical verification and full solution annealing to restore optimal corrosion resistance. Our quality control team measures center-to-end dimensions, wall thickness, bevel angles, and out-of-roundness (ovality) using calibrated gauges and ultrasonic meters. All shipments include full EN 10204 3.1 Material Test Reports (MTRs), and we fully support Third-Party Inspection (TPI) by SGS, BV, or TÜV.

For standard 304/304L and 316/316L schedule sizes, we offer flexible MOQs, especially when combining multiple fitting types into a single shipment. Standard manufacturing and order processing lead times are 30 to 45 days. Expedited production runs are available upon request to align with urgent project or shutdown schedules.

Smaller to medium-sized 45-degree elbows are fitted with protective plastic end caps and packed inside ISPM-15 heat-treated, seaworthy wooden cases lined with waterproof film. Larger diameter fittings are steel-strapped into heavy-duty wooden bundles on pallets with inter-layer cushioning to prevent metal-to-metal contact and surface scratches during long-distance shipping.

We accommodate a full range of international commercial trade terms, including EXW, FOB (Taiwan/China ports), CFR, CIF, and DDP. Shipments can be arranged as Full Container Load (FCL) or Less than Container Load (LCL) ocean freight. For urgent job sites or prototype testing, we also offer express air freight options.

Ready to plan your order?

Request a quote for stainless steel pipe fittings with your size, grade, and quantity.
